Dahua TIOC 2.0 8MP 4K AI Active Deterrence Full-color Starlight IP Turret Fixed 2.8mm Mic & Speaker, Wizsense Camera Kits

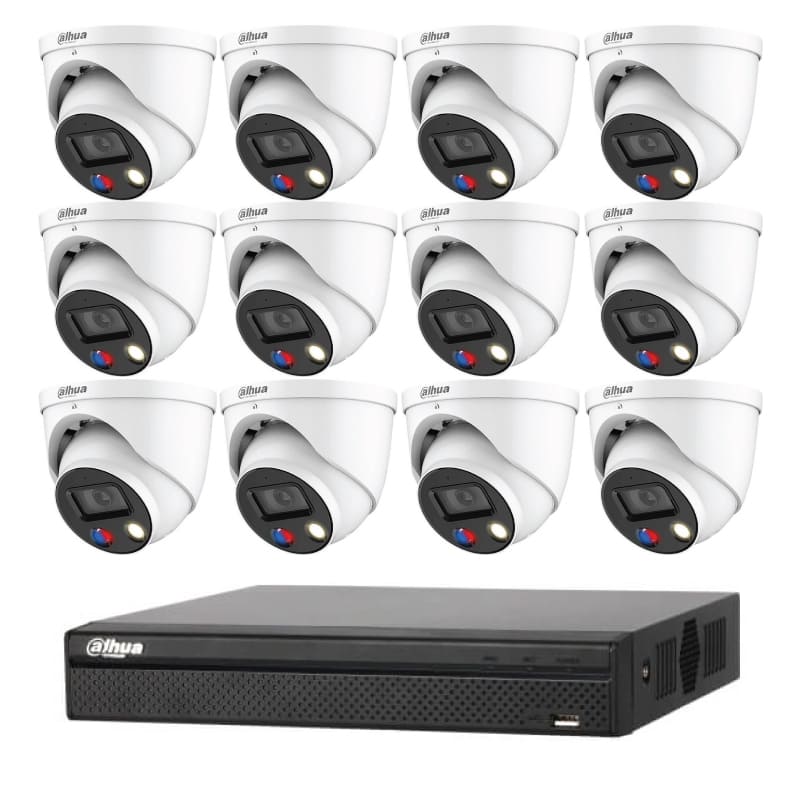

- 1 x 16CH 4K NVR DHI-NVR4216-16P-4KS2/L
- 12 x TiOC 2.0 Three in One Camera, 8MP 4K Full-color, IP Turret Camera Fixed 2.8mm DH-IPC-HDW3849HP-AS-PV-0280B-3
- 1 x Bay HDD, Optional to Hard Drive.
- Recommend upgrade Rocoder Pro NVR.
- 8 MP 4K 1/2.8'' CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840x2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max.
- IR illumination distance is 30m and warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker.
- 12 VDC/PoE power supply.
- IP67 protection.

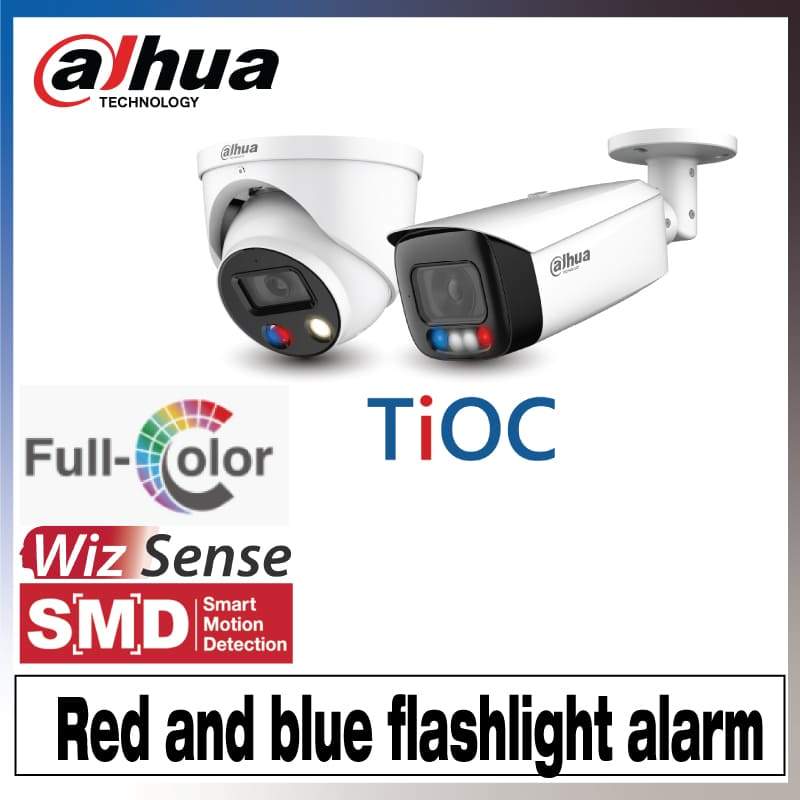

Sound and light alarm (red and blue lights).
- One press arming/disarming through alarm input.
Dahua 4ch NVR Record Up to 8MP, 4 Port PoE,HDMI(4K), Smart 2.0, P2P
- New 4.0 user interface, Security baseline 2.1
- H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
- Max. decoding capability: 8x1080p@30 fps. Supports adaptive decoding
- Supports mainstream cameras of ONVIF and RTSP protocols
- P2P remote surveillance, video play on mobile device
- VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
- AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
- Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches
|NUMBER OF CHANNELS||16CH|
|NUMBER OF POE PORTS||16*POE PORTS|
|NUMBER OF HARD DISK BAY||2*HDD|
|NETWORK BANDWIDTH||200 Mbps Access & Storage, 96 Mbps Forwarding|
|MAXIMUM RESOLUTION SUPPORT||8MP|
What is TiOC 2.0?
With its foundation from the previous generation of TiOC, a variety of new innovative technologies are introduced in the latest TiOC 2.0 for the first time, achieving breakthroughs and quality improvements in illuminators, audio and images. At the same time, TiOC 2.0 can be integrated with alarm system through software upgrades. It provides better ecosystem that offers more convenient operation and better user experience.
- Smart Illumination Mode (Default): Switch between IR Mode and white light when target is detected.
• IR Mode (Optional): Only the IR illuminator is ON. It is suitable for scenes where supplementary white light is not required, significantly reducing light pollution.
• White Light Mode (Optional): Only the white light is ON. It is suitable for scenes that require color video footages.
• First Dahua camera powered by OPC (Optical Path Technology). It corrects the refraction angle of different light path. With F1.0 large aperture lens, it outputs brighter and clearer black & white images.
- 4K Real-time: Smooth 4K real-time images at 30 fps even when AI is enabled, with high brightness using F1.0 large aperture.
Auto Tracking 3.0 (PTZ)
Smooth Tracking Process
Combined with PFA 3.0 algorithm (a deep fusion of intelligent algorithms and focusing algorithms), it realizes touchless focusing during the tracking and capturing process.
• Less Light Pollution: Less use of white light means less light pollution
• Active Deterrence: Warn off intruders during the intrusion
• Color Monitoring: Presents color alarm videos
• Scenarios: Villas, shops, warehouses, etc.
• Active Deterrence: Customized sounds and light alarm to warn the target in the area
• Accurate Detection: Focuses on human and vehicle targets to accurately identify real targets
• Ecosystem: One-tap disarming with alarm-in port or DMSS.
• Scenarios: Fire exits, emergency exits, etc.
With an advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
Siren and Light Active Deterrence Dahua siren and light active deterrence network camera support the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built-in multiple voices for selection and supports customized voice importing.
SMART DUAL ILLUMINATORS
Dahua Smart Dual Illuminators technology adopts a smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color images. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.
Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through a mobile App, which meets multi-scenarios needs.
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
PROTECTION (IP67, WIDE VOLTAGE)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can works normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.
