- 8 Channel HD-TVI 4.0 DVR
- Up to 2 channel IP - 6MP max
- H.265/H.265+ encoding
- 5MP@12fps, 4MP@15fps, 3MP@18fps, 2MP@ 25fps
- Up to 800m for 1080p and 1200m for 720p
- 2x HDD Bays
- HDMI output up to 1080P resolution
- VGA and CVBS output
- Mobile application and PC client
- P2P - quick remote access setup

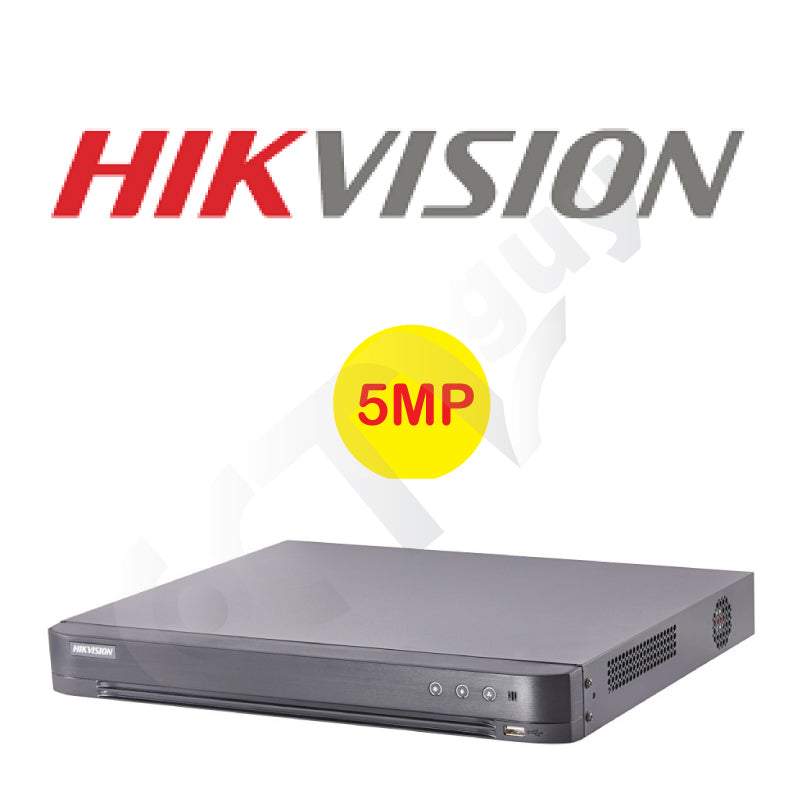

HIK-7208HUHI-K2 is a 8 channel DVR that has been designed to support up to 5MP TVI cameras at 12 frames per second over coxial cable. Offering compatibility with multiple video formats ranging from standard definition analogue, 2MP AHD, 2MP HD-CVI, 5MP HD-TVI and up to two 6MP IP, this DVR supports H.265/H.265+ intelligent video compression technology which dramatically reduces bandwidth and storage requirements by up to 50%. Additionally, this machine provides 8 BNC input interfaces and is capable of providing 4K(UHD) video outputs via HDMI. Other benefits of TVI 4.0 include: The absence of video delay in live viewing, bi-directional signaling, and long video transmission range of up to 800m over coaxial cable. All of this adds up to an incredible breakthrough in the evolution of analogue video transmission.
|Video Compression:||H.265 Pro+/H.265 Pro/H.265/H.264+/H.264|
|Analog and HD-TVI video input:||8-ch,BNC interface (1.0Vp-p, 75 Ω)connection|
|Supported camera types:||Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
|Video Input Interface:||BNC (1.0 Vp-p, 75Ω)|
|Audio Input Interface:||4-ch, RCA (2.0 Vp-p, 1 KΩ)|
|Two-way Audio:||1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)|
|HDMI/VGA Output:||VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
|Recording resolution:||8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF|
|Frame Rate:||Main stream:
8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
WD1/4CIF/CIF@25fps (P)/30fps (N)
|Video Bit Rate:||32 Kbps-10 Mbps|
|Two-way Audio:||1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)|
|Audio Output:||1-ch RCA(Linear, 1kΩ)|
|Audio Bit Rate:||64kbps|
|Network protocols:||TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF|
|Hard Disk Driver|
|Interface Type:||2 SATA Interfaces|
|Capacity:||Up to 10 TB capacity for each disk|
|Network Interface:||1; 10M / 100M / 1000M self-adaptive Ethernet interface|
|USB Interface:||1 USB 2.0 Interface & 1 USB 3.0 Interface|
|Serial Interface:||1; standard RS-485 serial interface, half-duplex|
|Power Supply:||12 VDC|
|Consumption:||≤ 20W(without hard disks)|
|Working Temperature:||-10 oC to +55 oC (14 oF to 131 oF)|
|Working Humidity:||10% to 90%|
|Dimensions:||380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)|
|Weight:||≤ 1.78 kg (3.9 lb)|
