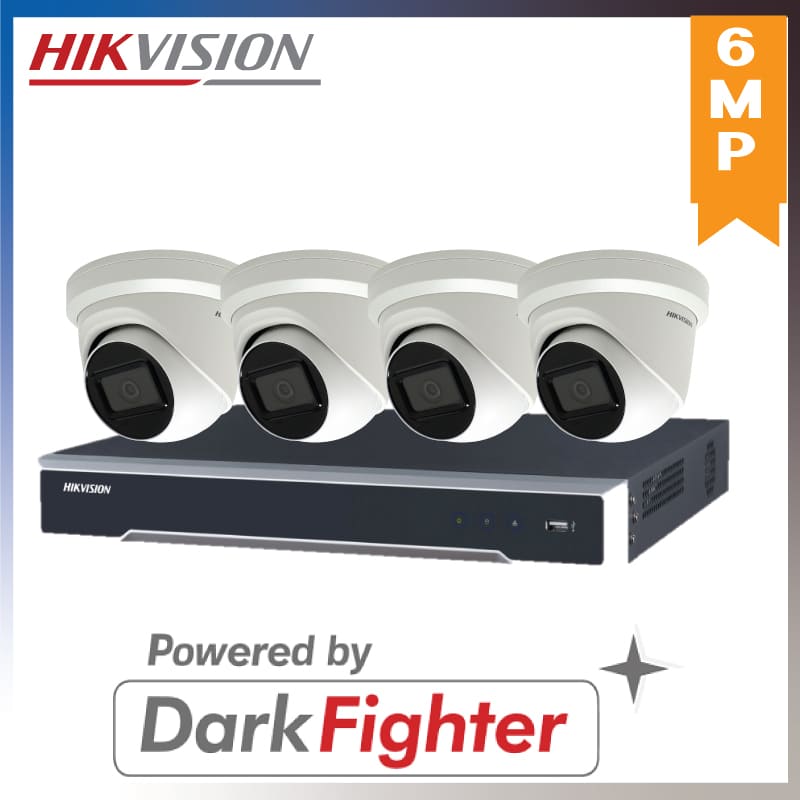

Hikvision 4 x 6 MP POWERED-BY-DARKFIGHTER FIXED TURRET NETWORK CAMERA + 4CH 4K NVR Recorder Kits
- 1 x Hikvision 4CH 4K NVR (HIK-DS-7604NI-I1-4P)
- 4 x 6 MP POWERED-BY-DARKFIGHTER FIXED TURRET NETWORK CAMERA
Fixed 2.8mm (HIK-DS-2CD2365G1-I-2)
- 1 x Bay HDD, Optional to Hard Drive.
6 MP POWERED-BY-DARKFIGHTER FIXED TURRET NETWORK CAMERA
- 2.8mm Lens
- High-quality imaging with 6 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Water and dust resistant (IP67)
- Robust structure design with full metal materials
Hikvision model - DS-2CD2365G1-I
- Image Sensor - 1/2.4" Progressive Scan CMOS
- Min. Illumination - Colour: 0.014 Lux @ (F1.6, AGC ON)
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120dB
- Day & Night - IR Cut Filter
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Focus - Fixed
- Lens Type - 2.8/4/6 mm
- FOV - 2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128° 4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101° 6 mm, horizontal FOV: 60°, vertical FOV: 38°
- Aperture - F2.0
- Lens Mount - M12
- Aperture Type - Fixed
IR Range - Up to 30 m
Wavelength - 850nm
- Max. Resolution - 3072 × 2048
- Main Stream - 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression - Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Scalable Video Coding (SVC) - H.264 and H.265 encoding
- Region Of Interest (ROI) - Support 1 fixed region for main stream and sub stream separately
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host - Up to 32 users,3 levels: Administrator, Operator and User
- Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage - Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

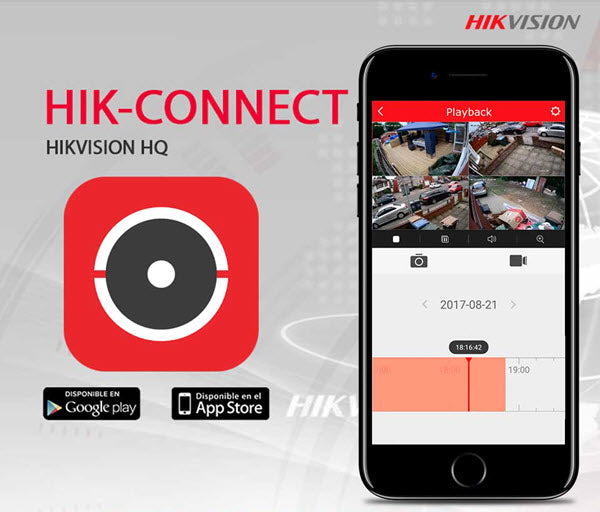

- Clienti - VMS-4200, Hik-Connect, Hik-Central
- Web Browser - Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Day/Night Switch - Day/Night/Auto/Schedule
- Target Cropping - Yes
- DNR - 3D DNR
- Image Enhancement - BLC/3D DNR/HLC
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Video Output - No
- On-Board Storage - Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset - Reset via reset button on camera body, web browser and client software
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Interface Style - Pigtail style interface
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event - Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
- Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Web Client Language - 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function - One-key reset, anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening, password protection, watermark, IP address filter
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection, PoE (802.3af, class 3)
- Power Consumption And Current - 12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 7.5 W
- Camera: Φ 138.3 × 125 mm (5.4″ × 4.9″)
- With package: 170 × 170 × 150 mm (6.7 × 6.7\" × 5.9\")"
- Camera: 730 g (1.6 lb.)
- With package: 1050 g (2.3 lb.)
- EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
- Safety - UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
- Environment 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
- Protection - Ingress protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) IP67
4-CH 1U 4 POE 4K NVR (HIK-DS-7604NI-I1-4P)
- H.265+/H.265/H.264+/H.264 video formats
- Up to 4-ch IP camera inputs
- 2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)
- 4-ch synchronous playback at up to 8MP resolution
- Model - DS-7604NI-I1/4P
Specifications Video And Audio
- IP Video Input - 4-ch Up to 12 MP resolution
- HDMI Output - 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output - 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Output - 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Incoming Bandwidth - 40 Mbps
- Audio Output - 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio - 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding Format - H.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability - 2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)
- Synchronous Playback - 4-ch
- Recording Resolution - 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p /VGA/4CIF /DCIF/2CIF/CIF/QCIF
- Network Protocol - TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Interface - 4 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
- SATA - 1 SATA interface
- Capacity - Up to 8 TB capacity for each HDD
- USB Interface - Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out - 4/1
- Power Supply - 48 VDC, 1.8 A
- Consumption - ≤ 15 W
- Working Temperature -10 to +55º C (+14 to +131º F)
- Working Humidity - 10 to 90 %
- Dimension (W × D × H) - 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
- ≤ 1.18Kg (2.6 lb)
Hikvision, Dahua, Samsung HiLook 3 years back to base manufacturer warranty.
Hard Drive 1 year warranty
